Hopper Tower 12 – Standard / Rotating

The Hopping Tower is a fun free-fall ride for the whole family, hopping up and down the tower.



On this tower ride, guests are moved up and down while the tower is rotating (optional). The rounded gondola seats 12 passengers and the individual over the shoulder lap bars ensures a maximum on safety while maximising the feeling of freedom. The various pre-programmed hoppping patterns make this ride highly re-rideable and creates an different experience with each and every ride.



ABC Rides' new rope guiding system provides the smoothest and highly dynamic ride experience. Perfectly set up for various theming opportunities and with the optional rotating function this ride is an eye-catcher suitable for both children, adults and spectators alike.

Highlights
  • New “hopping” tower ride

  • Smooth ride experience due to new rope guiding system

  • Free-fall sensation for youngsters

Technical Specification

*If accompanied by an adult and depending on local regulations, minimum height requirement can be lower.

All data are approximate and subject to adjustment during the final engineering.

 Ø 7.3 m

15.8 m

10 m

0 - 3 m/sec.

0 - 4 rpm

1

12

45 sec.

60 sec.

105 sec.

411 pph

95 cm minimum

120 cm unaccompanied

Ground space

Total height

Lift height

Lift speed

Rotation speed (optional)

Number of vehicles

Vehicle capacity

Load / unload time

Ride time

Total cycle / dispatch time

Theoretical capacity

Height requirement*

Layout
Hopper Tower 12 Rotating
Hopper Tower 12 Rotating

Hopper Tower 12 Rotating ABC0900-01-433-rotating

press to zoom

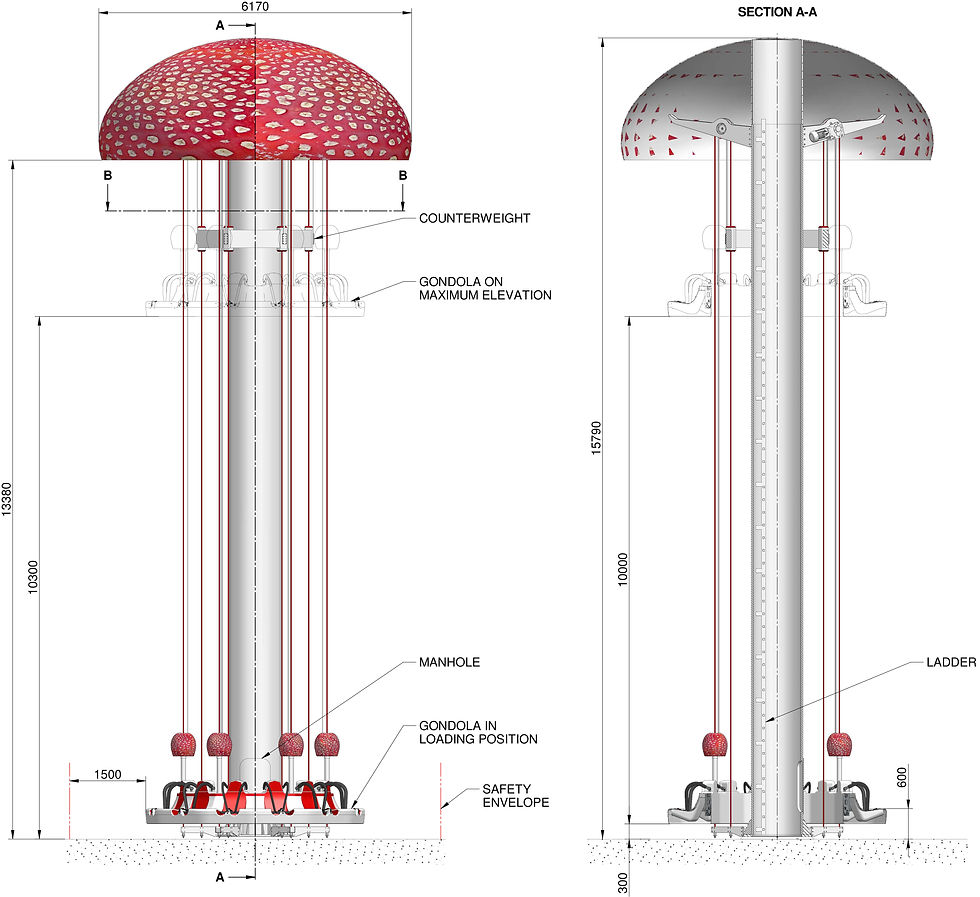

Hopper Tower 12 Rotating Measurements
Hopper Tower 12 Rotating Measurements

Hopper Tower 12 Rotating Measurements ABC0900-01-433-rotating

press to zoom
Hopper Tower 12 Standard Measurements
Hopper Tower 12 Standard Measurements

Hopper Tower 12 Standard Measurements ABC0900-01-432A-standard

press to zoom
Hopper Tower 12 Rotating
Hopper Tower 12 Rotating

Hopper Tower 12 Rotating ABC0900-01-433-rotating

press to zoom
1/4
